3. Settings

Pressing the cog on the main page will take you into the settings pages.

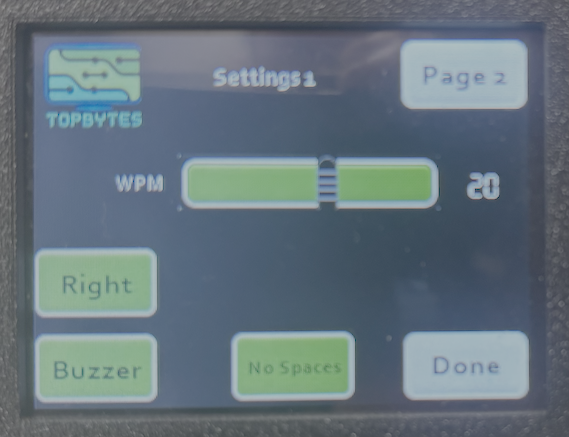

3.1. Page 1

../_images/settingsP1.png

  • WPM, Words Per Minute, Move the slider to change the length of a dot, which in turn will determine the length of everything else.

  • Right/Left, Switch the paddle for Left and Right handed operation. This swaps which side of the paddle is a dot and which is a dash in software. See Paddle Hand Configuration for details.

  • Spaces, add a space to the output when the delay between characters is long enough.

  • Farnsworth, (if available) Adjust extra spacing between characters (50-2000ms). Higher values give more time to process each character - useful for learning.

  • Language, The flag shows the current language selected, clicking on it offers the choice of different languages.

Select the Done, button to return to the main page. Pressing Page 2 will take you to the next page of settings.

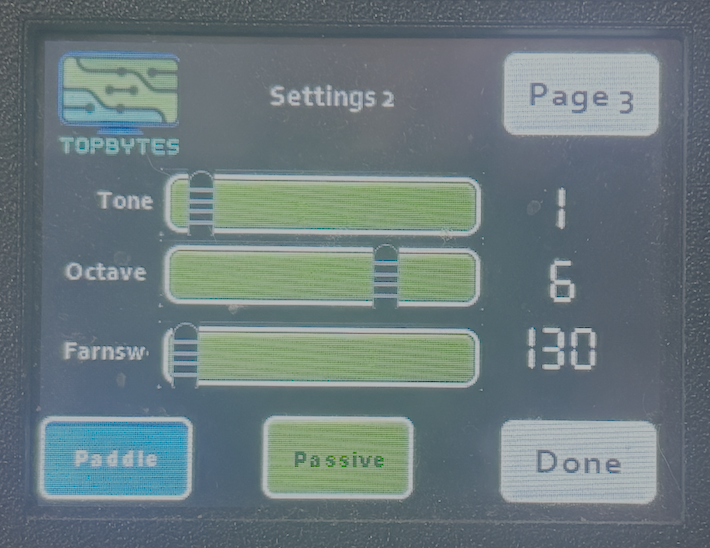

3.2. Page 2

../_images/settingsP2.png

  • Tone, Select the tone for the morse buzzer

  • Octave, Adjust the octave of the morse buzzer

  • Farnsworth, Adjust the Farnswoth, which is the spacing between characters and words.

  • Paddle/Straight, Select between using a Paddle and a straight key.

  • Passive/Active, Select between Passive and Active Buzzer.

Note

Tone and Octave settings are only valid when using a "Passive" buzzer and hidden otherwise.

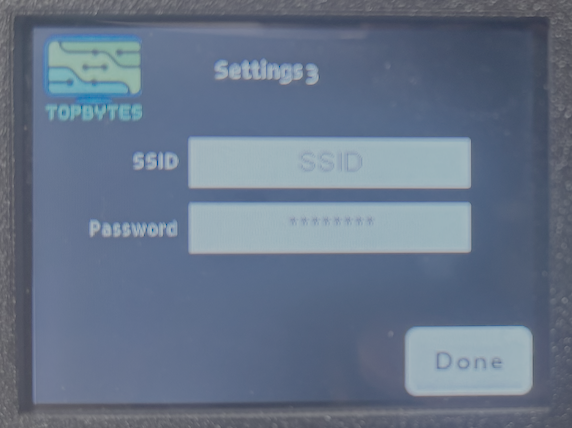

3.3. Page 3 - WiFi Settings

../_images/settingsP3.png

Configuring WIFI, select on the "SSID" and "Password" boxes to enter the credentials to connect to your WIFI network.

3.4. Web Interface Configuration

In addition to on-device settings, you can configure your Morse Trainer via a web interface when connected to WiFi.

Accessing Web Interface

  1. Connect device to WiFi network (via Page 3 settings)

  2. Note the IP address displayed on screen

  3. Open web browser on computer/phone/tablet

  4. Navigate to the device IP address

Available Configuration Pages

Hardware Configuration

  • Master Sound Control - Sound Enable (master mute toggle) - Tone selection (0-11) for morse audio - Octave selection (1-8) for morse audio

  • Key Input - Key Type (Paddle / Straight Key)

  • Output Configuration (3.5mm jack) - Paddle Output (separate dash output) - Audio Output (audio tones vs key signals) - 3.5mm Jack Volume (0-100%)

  • Buzzer Volume - Internal Buzzer Volume (0-100%)

Morse Configuration

  • WPM (Words Per Minute) - 5-60 WPM

  • Farnsworth Spacing - 50-2000ms

  • ELIZA Response Delay - 5-60 seconds

  • Paddle Hand (Right Hand / Left Hand)

  • Spaces toggle

  • Extra characters toggle

WiFi Configuration

  • SSID and password entry

  • Connection status

System

  • Device information

  • Reboot device

  • Factory reset

  • Firmware update (when not in AP mode)

Note

All settings configured via web interface are automatically saved to device memory and persist across reboots.

Warning

Firmware update button only appears when device is connected to WiFi (not in AP mode), as internet access is required to download firmware updates.
